Product Description

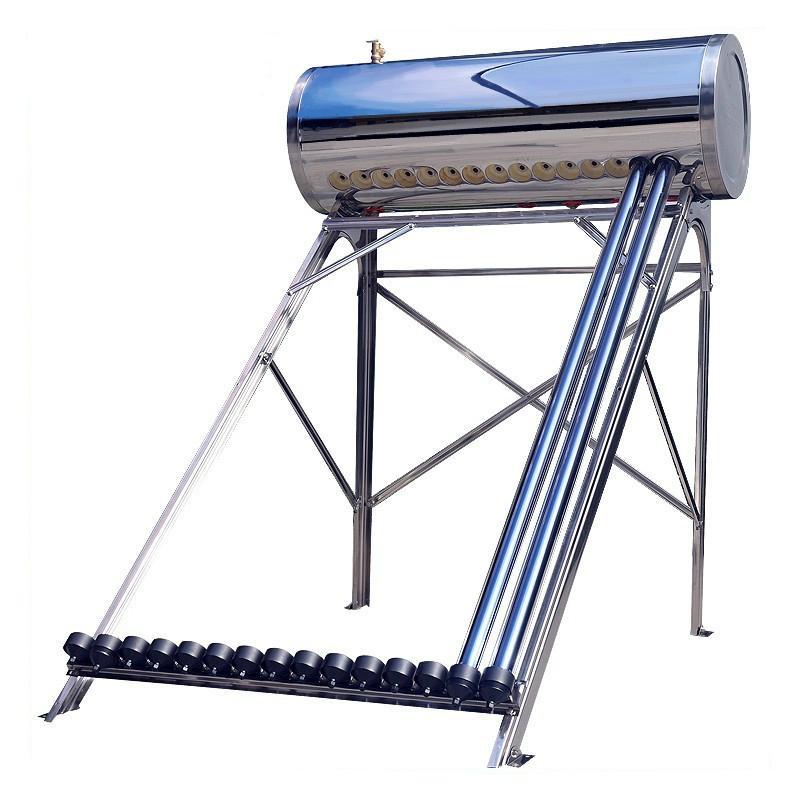

100Liter compact high pressurized solar water heater,JJL heat pipe solar energy system solar geyser, solar collector water heaters


Specification:

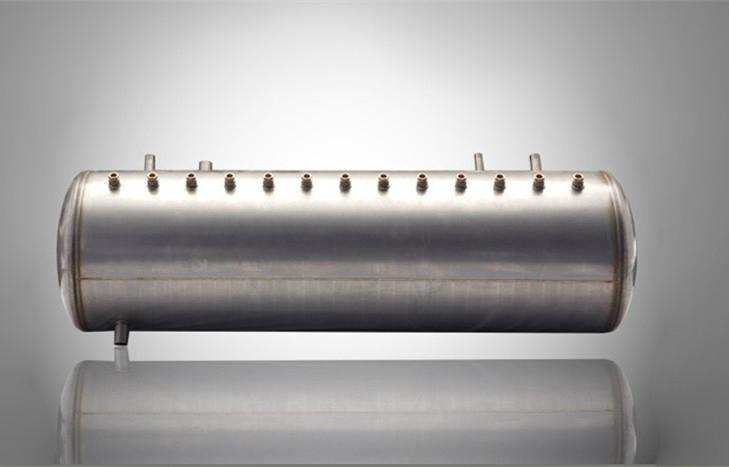

1. Inner tank:SUS304-2B food grade stainless steel; thickness:1.5mm.
2. Outer tank: SUS201 Stainless steel,0.4mm
3. Vacuum tube:58 x 1,800mm Heat pipe vacuum tubes
4. Insulation: 50-55mm thickness polyurethane foam                                                                 5. Tank Include: keep Electric Heater hole
6. Frame(Bracket):SUS201 stainless steel; thickness: 1.2mm
7. Package: Cartons with foam
8. Angle: We will ajust it to different countries' latitude and usage.
9. Heat preservation: 72hrs
10. Hail resistance: Φ25mm                                                                                       11. Installation: slope roof or flat roof

Features:

1. Adopts the best conduction performance metal- heat pipe (copper)
2.Can be used all year round in the cold climate
3.High efficiency, rapid warming. Heat pipe in vacuum tube could transfer hot energy to cold water in pressurized solar water heater tank rapidly
4.The whole pressure of the system is up to 1.5kg/M2, the inlet could connect the tap water directly, the max pressure can be 0.6Mpa
5. No water in the tube, one tube broken don't influence the system working
6.The design for inner tank is reasonable and scientific, which could hold 100, 000 times fatigue test without any damage
7. Dual-purpose brackets for both flat and inclined roof
8.The system is pressurized,it keep a constant temperature of water in the tank, avoid the problem came from water level controller malfunction which could cause water flow out

Packaging:standard export cartons
Shipping:
1. Loading port:Shanghai, Ningbo
2. Sea transport
3. EXW,FOB,CIF all accepted

Payment Terms︰ T/T

Product Image
