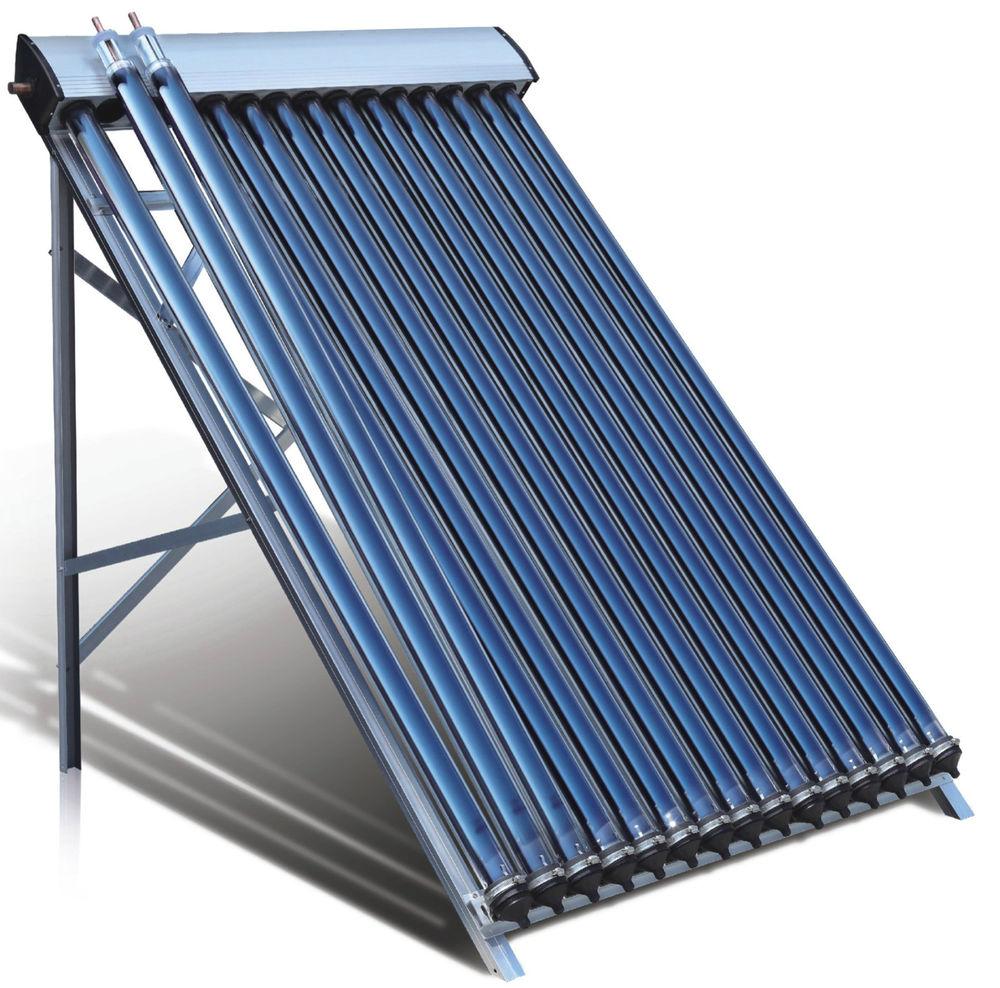

Material:
1.Heat pipe:Red copper,anti-freezing >=-35 celsius degree
2.Manifold:Stainless steel/Aluminum alloy--1.5mm.
3.Manifold:Red copper Ø22mm thickness 2mm
4.Glass tube dimensions:58*1800mm/47*1500mm
5.Bracket:stainless steel/aluminum alloy--1.5mm.
6.Coating of vacuum tube:ALN/AIN-SS/CU
7.Max pressure:1MPa
8.Daily efficiency:>= 55% (>=42% in winter)
Remark:
1.Manifold connections (mm/inch):38mm(outer)/34mm(inner) 1inch
2.Test Max pressure (MPa):1.0
3.Operating fluid pressure (MPa):0.6
4.Max.service temperature (degree): 95
5.Max.stagnation temperature (degree):200
6.Distance from tube to tube (mm):75
7.Flow range recommendation (l/m2h):50-150
8.Insulation hickness (mm):40
9.Min.collector angle (degree): 15
10.Max. collector angle (degree): 75

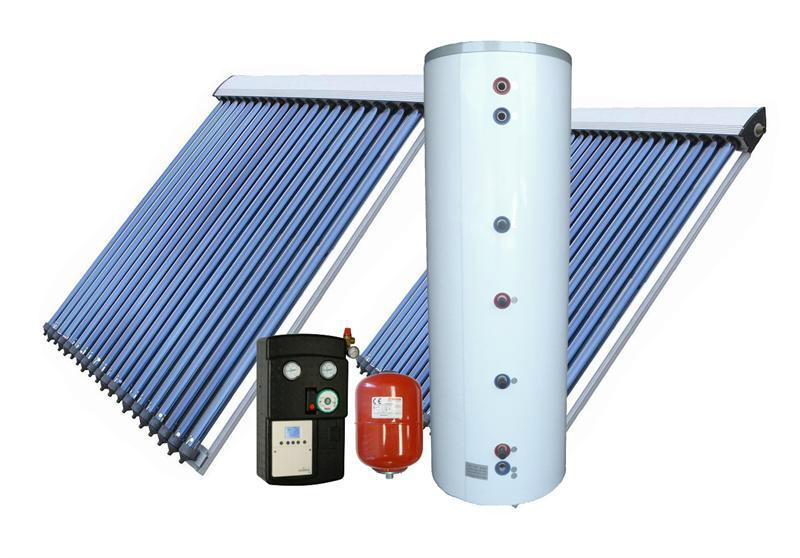

Working Station Component
1. Operating screen
2. Manometer
3. Pump speed adjust switches
4. Temperature difference circulation pump
5. Flow rate indicator
6. Return circuit connector
7. Safety valve
8. Expansion vessel connector9. Return circuit connector
10. Wall mounting
11. Expansion vessel: 5L, 8L, 12L, 19L, 20L, 24L
12. Pressure resistance: 10 bar pressure for expansion vessel
