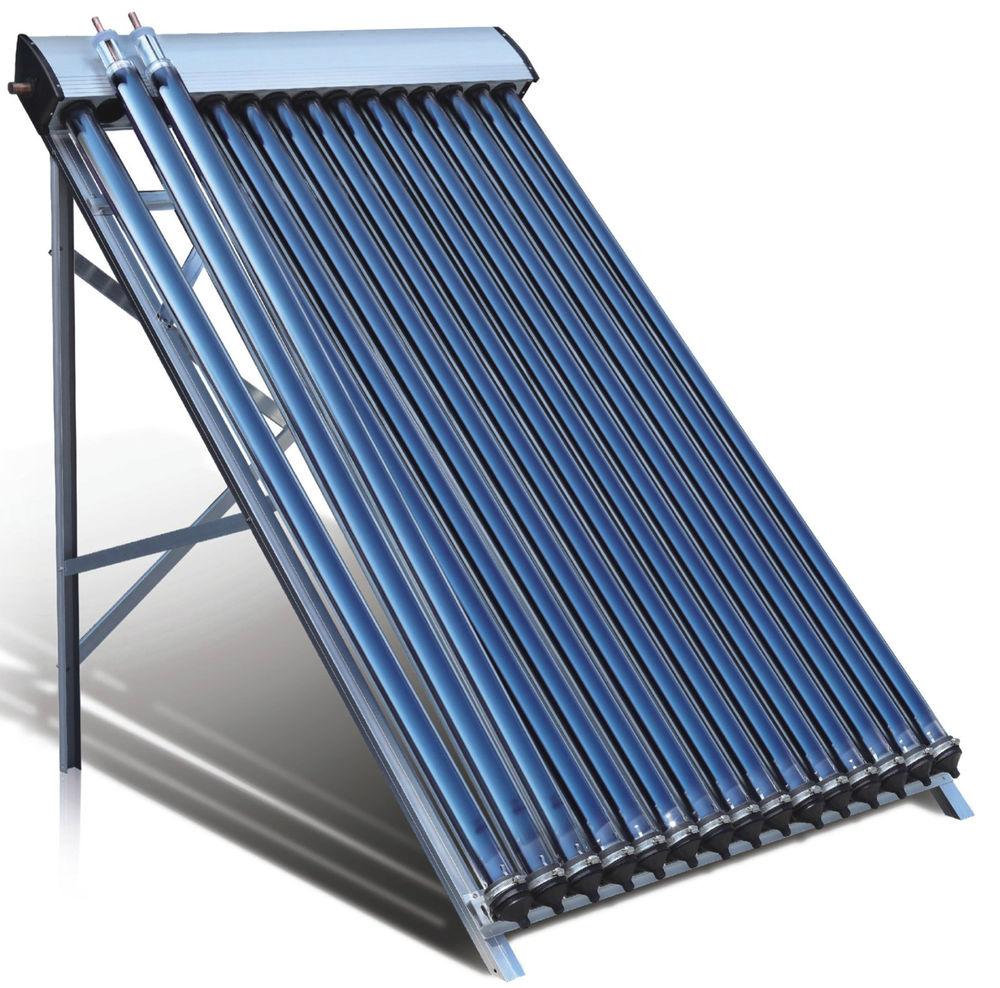

Heat pipe solar collector solar pool heater

  • Heat pipe solar collector solar pool heater
  • Heat pipe solar collector solar pool heater
  • Heat pipe solar collector solar pool heater
  • Heat pipe solar collector solar pool heater
  • Heat pipe solar collector solar pool heater
Model No.︰JJLSC-15
Brand Name︰JJL SOLAR ENERGY or optional
Country of Origin︰China
Unit Price︰US $ 187.5 / pc
Minimum Order︰10 pc
Share on:

 Total 20 Related Items
Prev1011121314Next

Product Description

15 Heat Pipe Solar Collector solar water heater system


Material:
1.Heat pipe:Red copper,anti-freezing >=-35 celsius degree

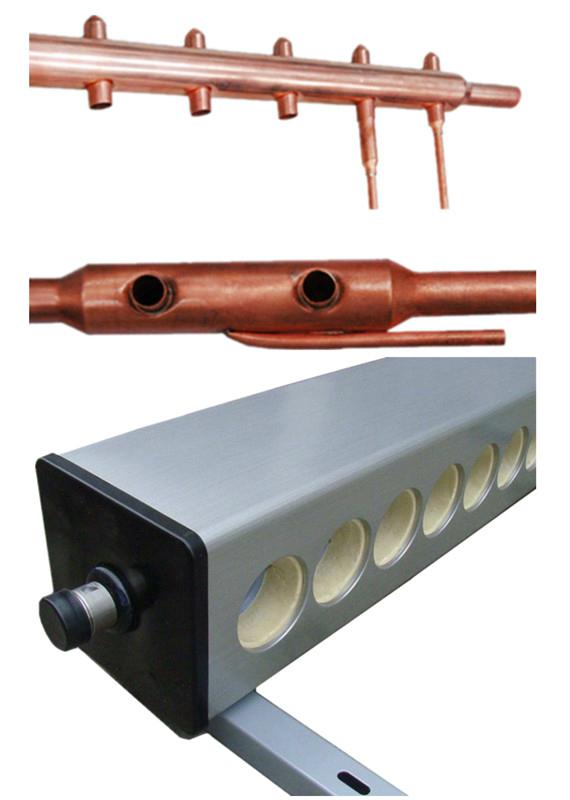

2.Manifold:Stainless steel/Aluminum alloy--1.5mm.
3.Manifold:Red copper Ø22mm thickness 2mm
4.Glass tube dimensions:58*1800mm/47*1500mm
5.Bracket:stainless steel/aluminum alloy--1.5mm.
6.Coating of vacuum tube:ALN/AIN-SS/CU
7.Max pressure:1MPa
8.Daily efficiency:>= 55% (>=42% in winter)

Remark:
1.Manifold connections (mm/inch):38mm(outer)/34mm(inner) 1inch
2.Test Max pressure (MPa):1.0
3.Operating fluid pressure (MPa):0.6
4.Max.service temperature (degree): 95
5.Max.stagnation temperature (degree):200
6.Distance from tube to tube (mm):75
7.Flow range recommendation (l/m2h):50-150
8.Insulation hickness (mm):40
9.Min.collector angle (degree): 15
10.Max. collector angle (degree): 75

Applications,
1. Hotels, resorts, hospitals and hostels
2. Process industry, boiler feed, laundry and canteens
3. Agricultural sector, hatcheries and dairies
4. Process industry, Boiler feed, Laundry and canteens
5. Agricultural sector, hatcheries, and dairies
6. Swimming pool heating
7. In-process heating
8. Health clubs (Steam / Sauna)

Payment Terms︰T/T
