Advantages

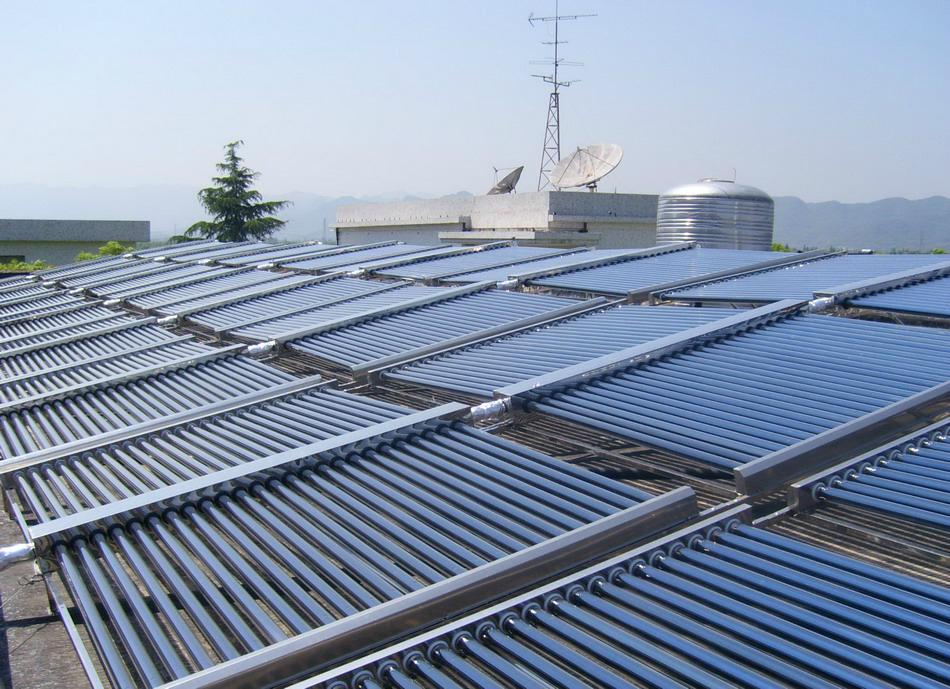

1). Central solar water heating system is designed based on customers water consumption.
2). By collecting the solar heat, it can heat a great amount of water that can accommodate tens of and hundreds of people.

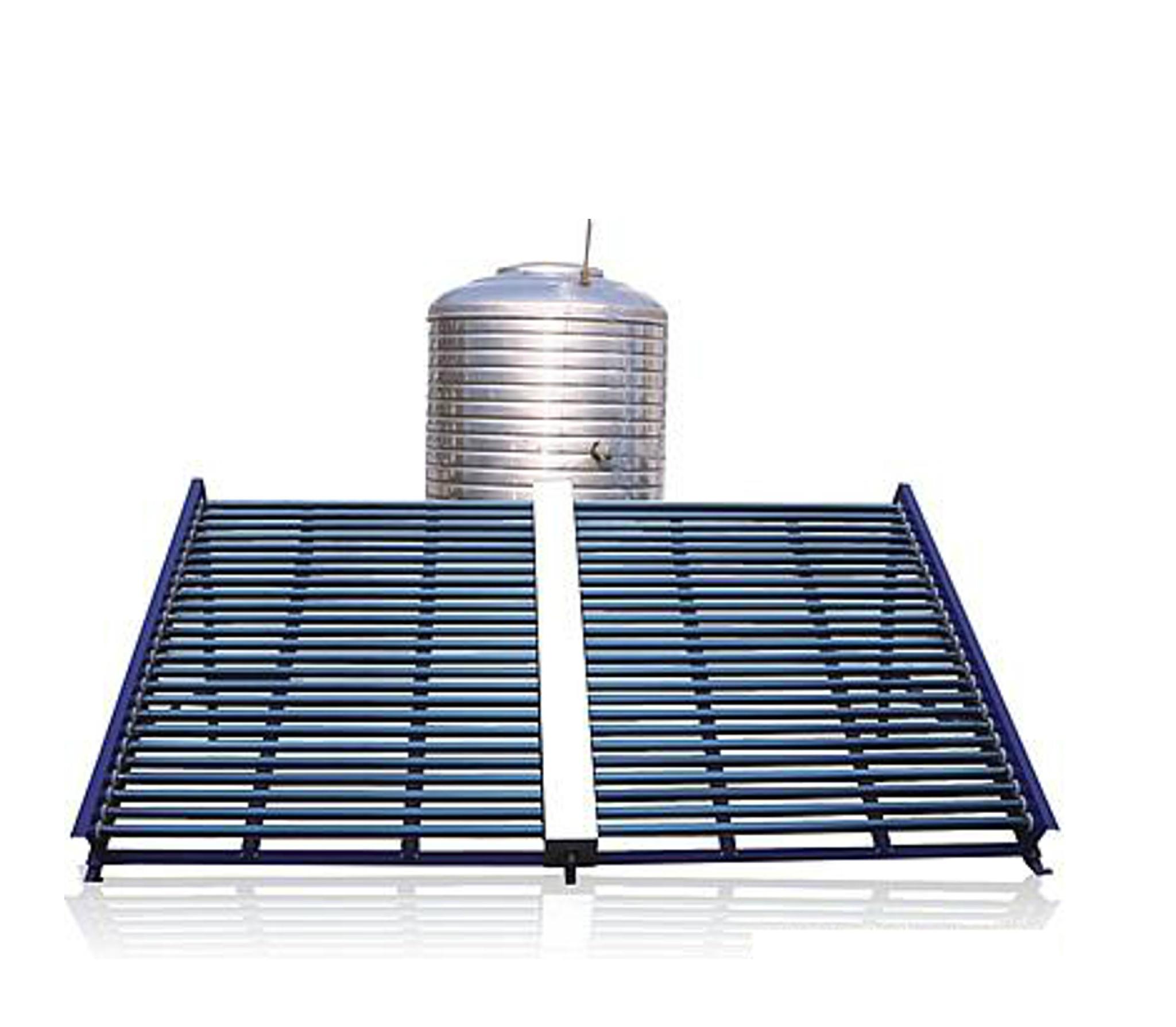

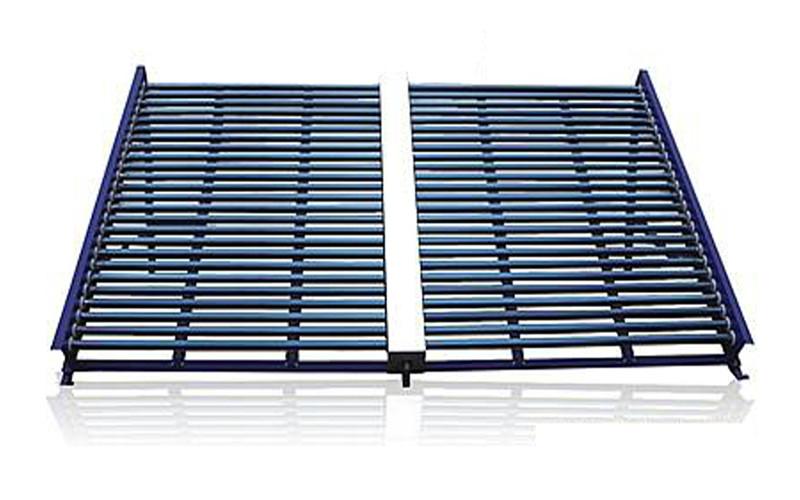

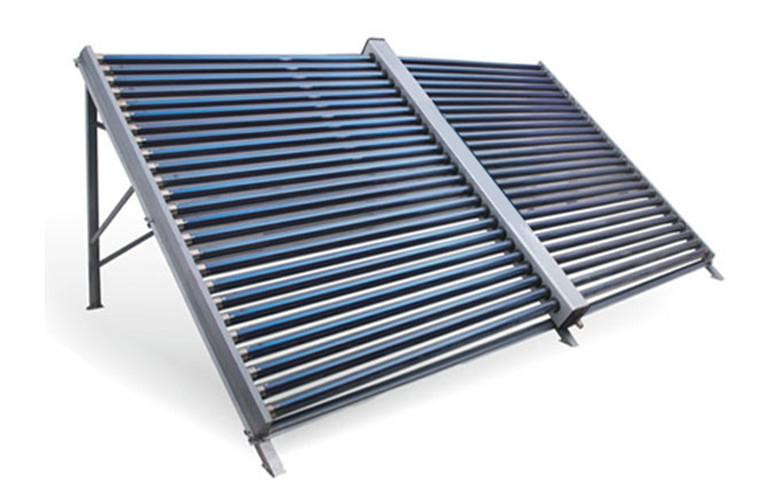

3). JJL solar thermal collectors SCNP series, a lot of these collectors can be linked together to make the solar central heating project. It is widely used in hotel, swimming pool, school etc.
4). Investment only once, benefit forever.
5). No harm, no pollution, saving and clean.
Characteristics
1). Supply plenty hot water
2). Economic model for larger solar project
3). Material of header pipe : Copper
4). Low cost for maintenance
5). The design allows for versatile architectonic integration
Parameter table:
| Model |
Tube orientation |
Tube
quantity
|
Absorb
area
|
Tube type |
| JJLSCNP58/1800-15 |
Vertical |
15 |
2.75 |
58x1800mm vacuum tube |
| JJL-SCNP58/1800-20 |
Vertical |
20 |
3.50 |
58x1800mm vacuum tube |
| JJL-SCNP58/1800-25 |
Vertical |
25 |
4.38 |
58x1800mm vacuum tube |
| JJL-SCNP58/1800-30 |
Vertical |
30 |
5.10 |
58x1800mm vacuum tube |
| JJL-SCNP58/1800-30 |
Horizontal |
20 |
3.4 |
58x1800mm vacuum tube |
| JJL-SCNP58/1800-30 |
Horizontal |
30 |
5.10 |
58x1800mm vacuum tube |
| JJL-SCNP58/1800-40 |
Horizontal |
40 |
4.96 |
58x1800mm vacuum tube |
| JJL-SCNP58/1800-50 |
Horizontal |
50 |
6.20 |
58x1800mm vacuum tube |
Applications
1. Hotels, resorts, hospitals and hostels
2. Process industry, boiler feed, laundry and canteens
3. Agricultural sector, hatcheries and dairies
4. Process industry, Boiler feed, Laundry and canteens
5. Agricultural sector, hatcheries, and dairies
6. Swimming pool heating
7. In-process heating
8. Health clubs (Steam / Sauna)
